Adding insulation to a solid brick wall underneath a bedroom bay window
Updated 07/26
By: Sarah P
Reviewed: Content Team
If you're considering adding insulation to a solid brick wall underneath a bedroom bay window, this is worth doing properly rather than as an afterthought. Most pre-1920s properties have solid brick walls with no cavity, and the wall section under a bay window is often the coldest, dampest part of the room, since bay windows expose more external wall surface to the elements on three sides instead of one.
Why the wall under a bay window is a particular problem spot
Whether you can insulate it, and from which side
The internal insulation methods available
The one detail that determines whether it actually works
Roughly what it costs
When to bring in a specialist rather than DIY
Find a trusted insulation installer near you

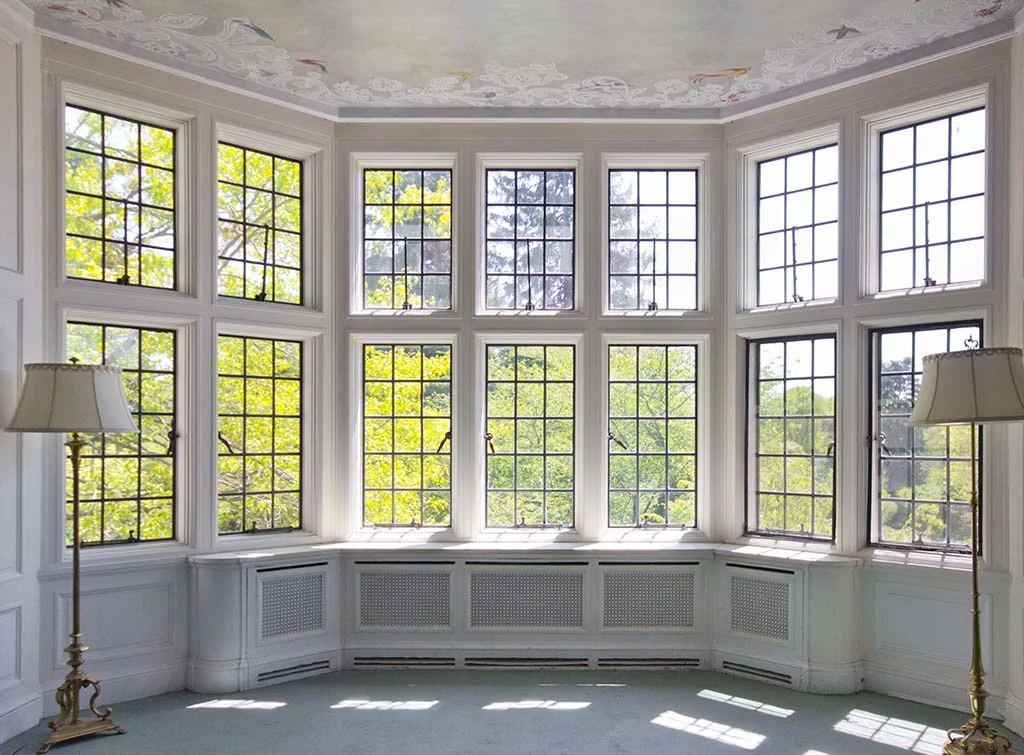

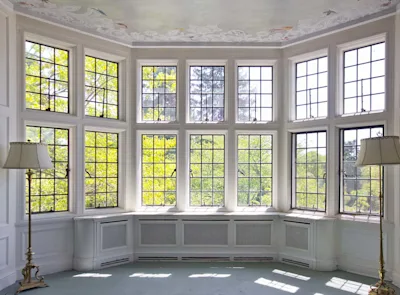

Why is the wall under a bay window often colder and damper?
A bay window doesn't just have one exposed wall, it typically has three, angled to project out from the main house. With no cavity to break the cold, solid brick conducts heat straight through, and the extra surface area under and around a bay makes this worse than a flat wall would be.
This combination of heat loss and cold surfaces is a common cause of condensation, mould, and draughts specifically in bay window rooms, even when the rest of the house feels fine. If you're already seeing damp or mould here, our guides on what's causing damp in your bedroom and getting rid of black mould and condensation are worth reading alongside this one, since insulation alone won't fix an existing damp problem caused by something else, like poor ventilation or a leak.
If your bay window area feels noticeably colder than the rest of the room, or gets condensation on the glass or wall more than elsewhere, that's a strong sign of a cold bridge under the window, and a good reason to prioritise this wall specifically rather than insulating the whole house evenly.
Can I insulate a solid brick wall under a bay window?
Yes, but bay windows aren't a standard flat wall, so there's more to plan for than a straightforward internal wall job. You can insulate from either the inside or the outside, but internal insulation is usually the simpler and more common route for a single wall section like this.

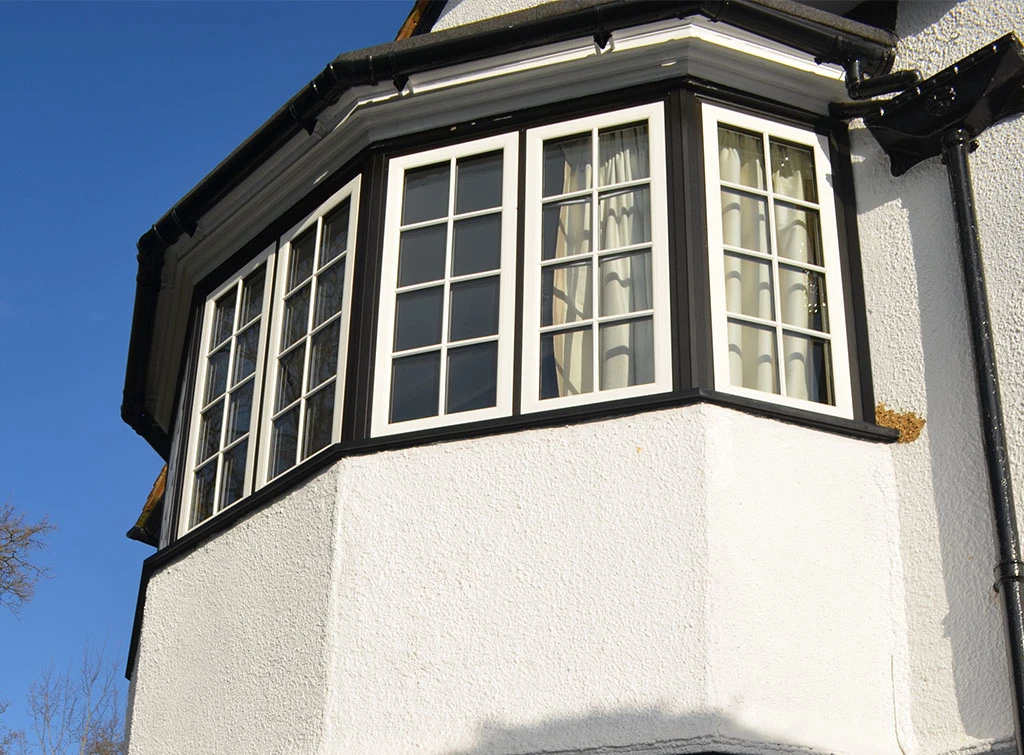

External insulation is possible too, but it's a bigger undertaking on a bay, since the render and insulation need to wrap around the angled sections and tie in neatly with the window reveals, roofline, and any existing brick detailing. It's rarely done in isolation and is more commonly part of a whole-house external insulation project.
How to insulate the wall in 4 steps
Check your wall construction. Confirm it's solid brick or stone (rather than an early cavity wall), since this affects which insulation approach and thickness will work.
Choose the right insulation material for the space and the wall's condition, factoring in the tighter, angled geometry of a bay.
Install the insulation, using adhesive or mechanical fixings, then seal all gaps, joints, and seams carefully.
Finish the wall with plasterboard and plaster.
This is one specific application of a wider topic. Our full guide to methods of insulating a single skin wall to meet building regs covers the building regulations thresholds and general internal vs external trade-offs in more depth.
The detail that actually determines whether it works
This is the step that gets skipped most often, and it's specific to junctions like a bay window: the insulation needs to run continuously into the window reveal, lintel, and any bay roof or floor junction, not just across the flat sections of wall. If there's a gap or break at these junctions, that untreated section stays cold, and you can end up with mould and condensation concentrated right at the edges of the window, even though the main wall is now insulated.
This is a common professional slip-up, not just a DIY one, so it's worth asking your installer directly how they'll handle the reveals and corners, not just the flat wall area.
Good ventilation matters just as much as good insulation here. Adding insulation without addressing airflow, especially in a bay window recess with curtains or furniture close by, can trap moisture rather than remove it. Make sure air can still circulate around the newly insulated area.
Internal solid wall insulation methods
Two of the more popular methods for a job like this:

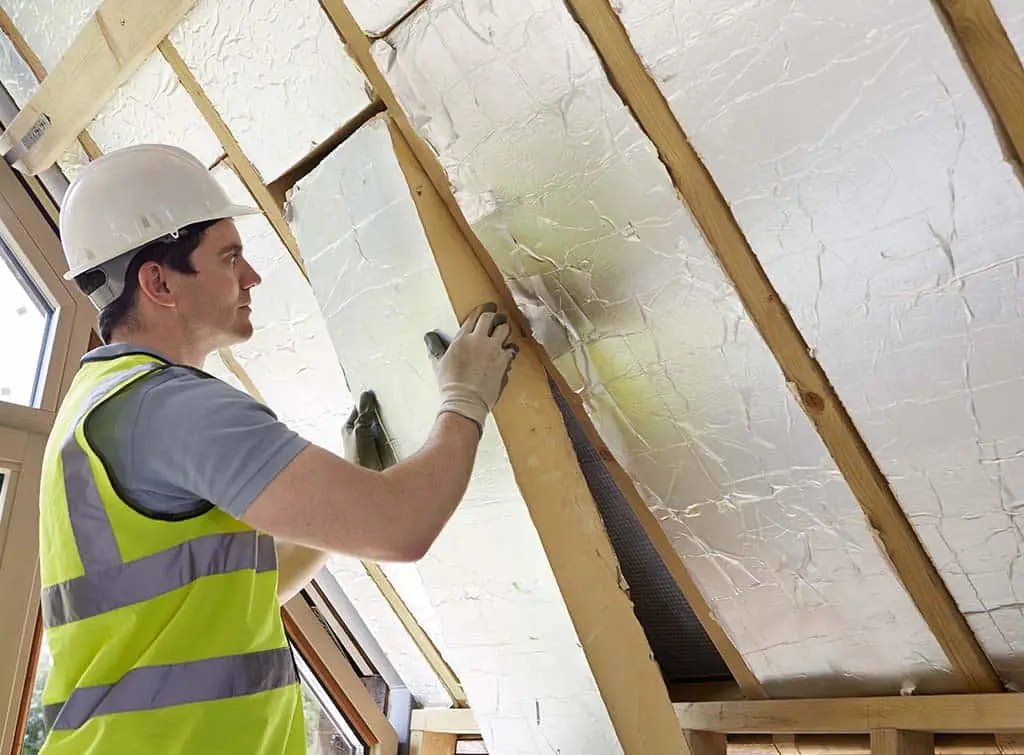

Rigid insulation boards, available in various materials and thicknesses, offer strong energy-saving performance and are relatively straightforward to cut and fit around a bay's angled sections.
Stud frames with infill insulation, using materials like mineral wool, wood fibre, sheep wool, or recycled materials, giving more flexibility in thickness and material choice, though they take up slightly more room depth.
Internal insulation can be more disruptive than it sounds in a bay window area specifically, since skirting boards, radiators, or electrics positioned in or near the bay may need moving to fit it properly. Budget for this as part of the job rather than a surprise extra.
On Checkatrade, you'll only find trades who meet our high standards and pass up to 12 checks.
How much does it cost?
Insulating a solid wall costs more than standard cavity wall insulation, and a bay window section typically costs more per square metre than a flat wall due to the extra cutting, junctions, and finishing involved. For a general sense of budgeting:
Our retrofit insulation cost guide gives a general steer for internal solid wall insulation projects.
Our external wall insulation cost guide is the better reference if you're considering the external route as part of a wider project.
What you need to know about eco-friendly insulation
Learn all about eco-friendly insulation with our handy guide. From reasons to choose green insulation, to different options and their key benefits.
Before you book
Frequently asked questions
Bay windows expose more wall surface to the outside on three sides rather than one, and without a cavity to break the cold, solid brick conducts heat straight through. This makes bay window walls a common cold spot compared to flat walls elsewhere in the room.
It should help significantly if cold surfaces are the cause, but if damp is coming from elsewhere (a leak, poor ventilation, or penetrating damp through the window frame), insulation alone won't fix it. Worth ruling those out first.
Internal is usually simpler and more common for insulating a single wall section like this. External insulation is possible but is a bigger job, usually done as part of insulating the whole house rather than one bay in isolation.
Internal insulation doesn't usually need planning permission, since it doesn't change the exterior appearance. External insulation might, particularly on street-facing walls or in conservation areas, so check with your local authority first.
It depends on the method, but budget for some loss of floor space, typically more with a stud frame approach than with insulated boards fixed directly to the wall.
